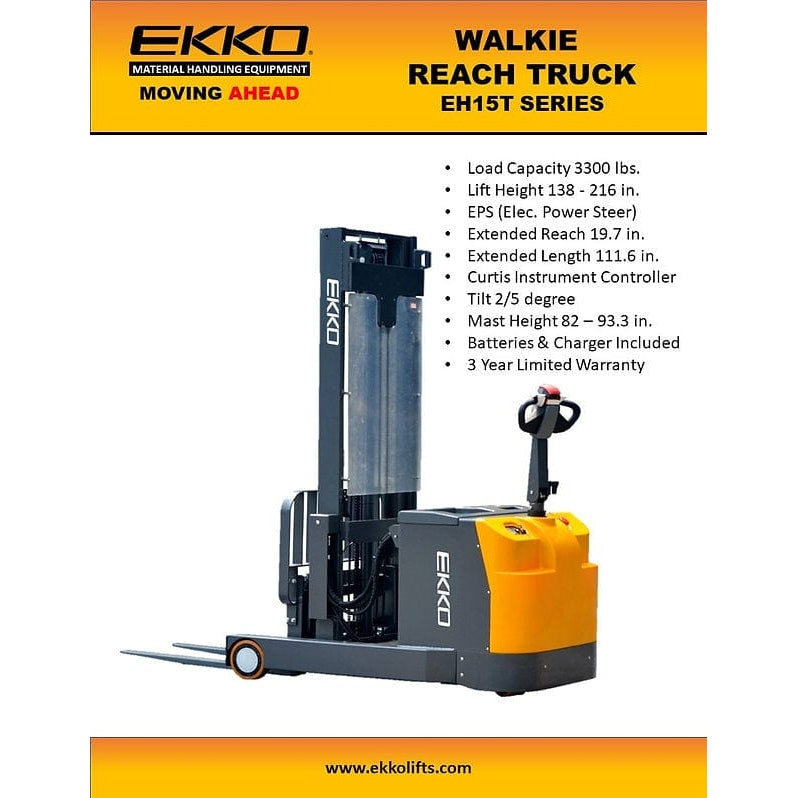

EKKO EH15TH Moving Mast Walkie Reach Truck — High-Reach 3,300 lbs Capacity with Triple Mast & EPS
The EKKO EH15TH Moving Mast Walkie Reach Truck combines the versatility of a forklift, reach truck, and walkie stacker into one powerful and efficient machine. Engineered for demanding industrial environments, it’s ideal for loading and unloading trucks, managing loading docks, organizing stockrooms, and smooth operation on manufacturing floors and warehouses.
Crafted from premium steel and quality components, this reach truck features durable drives designed to handle any terrain, impacts, and directional changes with confidence and reliability.

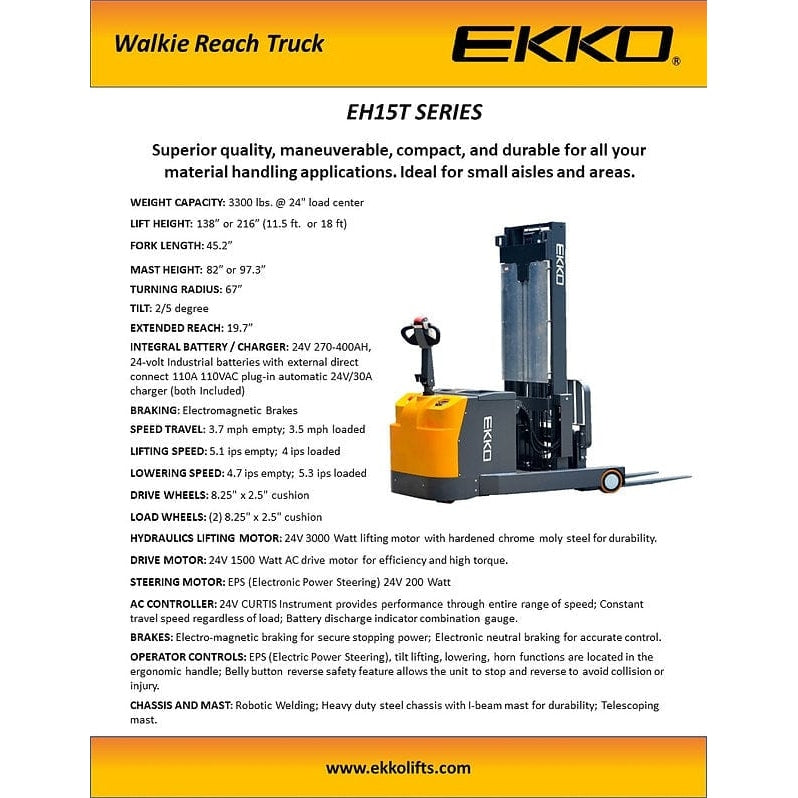

Key Features
-
Load Capacity: 3,300 lbs — handles medium to heavy loads with ease
-
Maximum Lifting Height: 216" (18 ft) — ideal for high stacking and reach in tight spaces
-
Free Lift: 68" — allows lifting without increasing mast height, perfect for confined areas
-
Reach Distance: 19.7" — extended reach for better access to loads
-

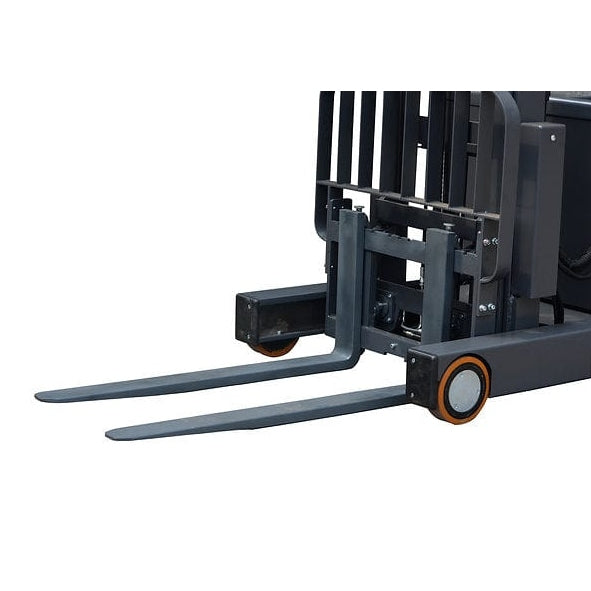

Adjustable Fork Width: 8.7" – 29.1" — accommodates various pallet sizes
-
Fork Length: 45.2" — versatile for a wide range of load types
-

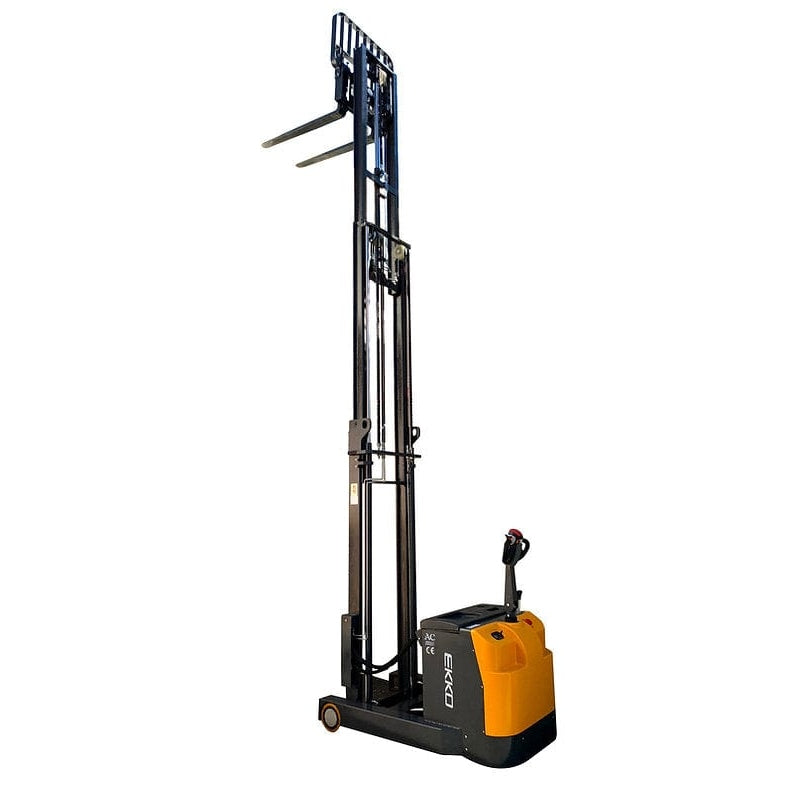

Triple Mast Design: Enables high lift capacity while maintaining compact lowered mast height
-
Motors: Powerful 24V AC Drive Motor and 24V Lift Motor for smooth, efficient operation
-
Controller: Curtis Instrument Controller for precise control
-
Electric Power Steering (EPS): Ensures smooth, easy maneuverability
-
Battery: Large capacity 24V/400Ah lithium battery with included charger for long runtime
-
Construction: Steel frame with robotic welding for exceptional durability
-
Wheels: Polyurethane wheels provide quiet and stable movement across surfaces
-

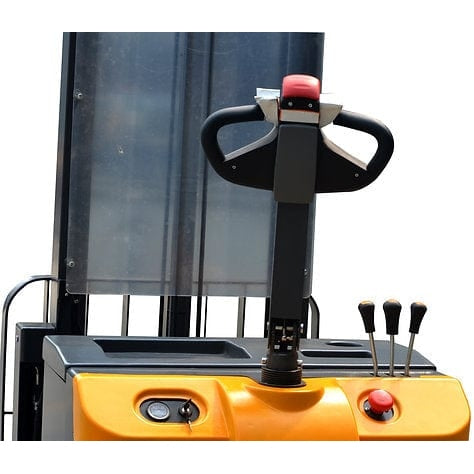

Ergonomics: Designed with ergonomic handle and controls to maximize operator comfort
-
Warranty: 3 Years Limited Warranty for peace of mind

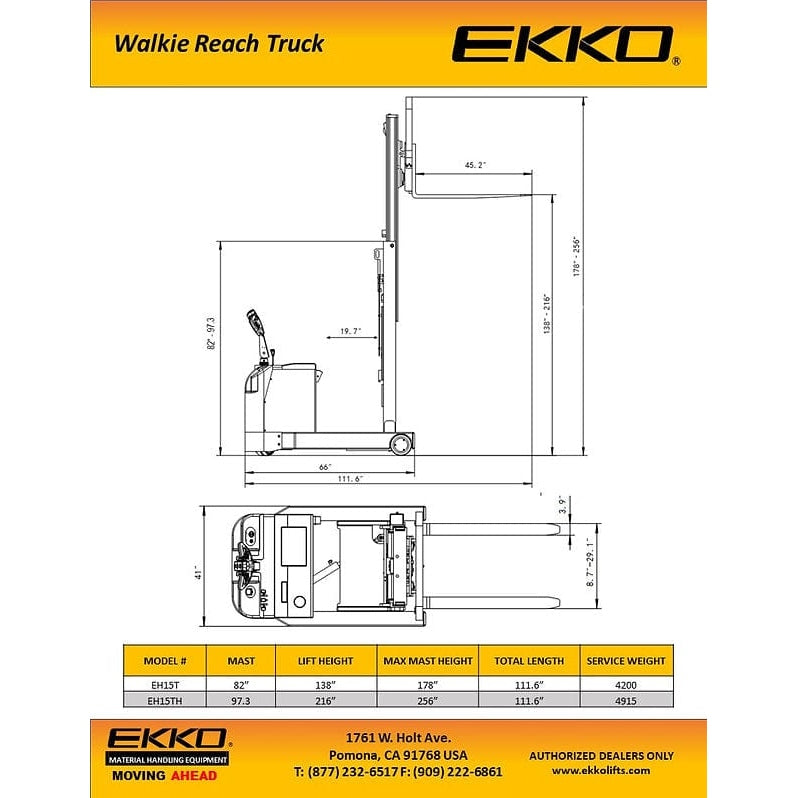

Specifications
| Specification | Details |
|---|---|
| Model | EH15TH |
| Operation | Electric Lift & Drive |
| Load Capacity | 3,300 lbs |
| Load Center Distance | 24" |
| Maximum Lifting Height | 216" (18 ft) |
| Free Lift | 68" |
| Lowered Mast Height | 97.3" |
| Overall Length | 111.6" |
| Overall Width | 41" |
| Fork Thickness / Width / Length | 1.4" / 4" / 45.2" |
| Fork Adjust Width | 8.7" – 28" |
| Reach Distance | 19.7" |
| Turning Radius | 67" |
| Charger | 24V / 50A |
| Driving Motor | 24V AC / 2.5 kW |
| EPS Steering Motor | 24V / 200W |
| Lifting Motor | 24V / 3,000W |
| Battery Voltage & Capacity | 24V / 400Ah |
| Service Weight | 4,915 lbs |
Why Choose the EKKO EH15TH?
With its impressive 18-foot lift height, robust 3,300 lbs capacity, and ergonomic design, the EKKO EH15TH is perfect for operations requiring high reach and precise control in tight spaces. Its triple mast construction and electric power steering enhance maneuverability and productivity, making it the ideal solution for warehouses, loading docks, and manufacturing environments demanding durability and efficiency.
