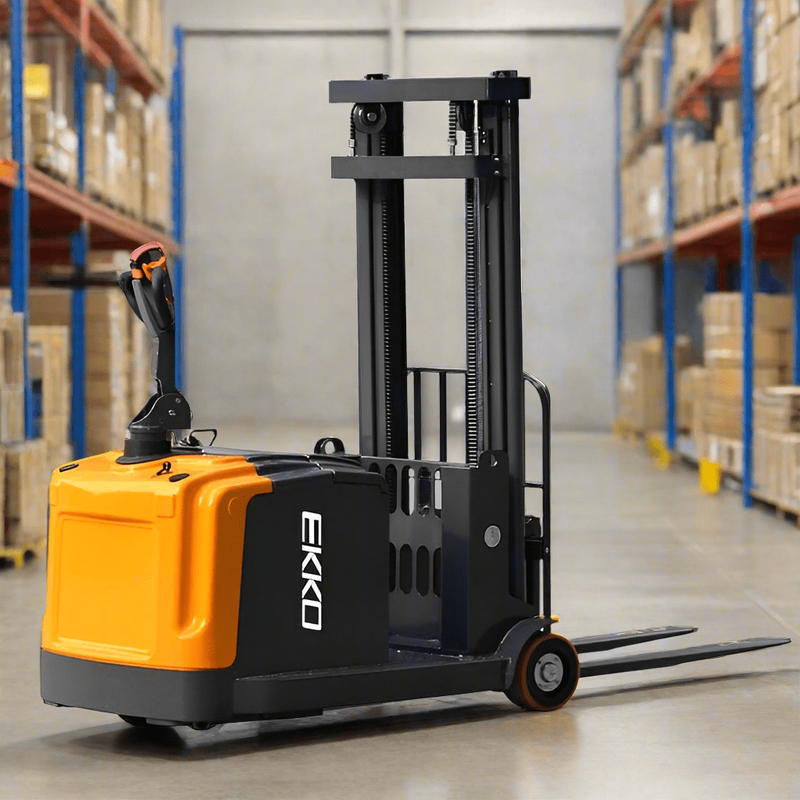

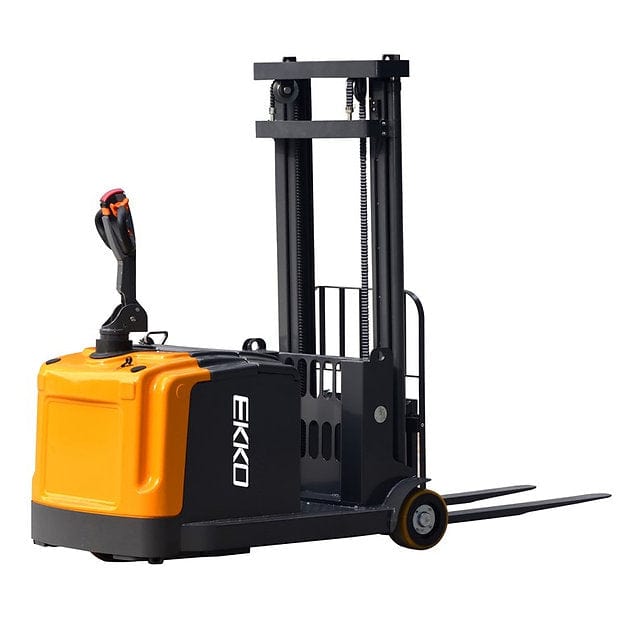

EKKO EK14-138 Fully Powered Counterbalanced Walkie Stacker — 3,300 lbs Capacity with 138" Lift Height
The EKKO EK14-138 expertly blends the strength and flexibility of a forklift with the compact maneuverability of a walkie stacker. This model is perfect for efficient loading and unloading at trucks, warehouses, stock rooms, and manufacturing floors.
Crafted from high-quality steel with robotic welding and durable drive components, the EK14-138 is built to endure heavy use across varied terrains and tight spaces. Equipped with advanced ergonomics and smooth electronic power steering, it ensures operator comfort and precise handling.
Key Features
-
Load Capacity: 3,300 lbs — handles medium to heavy pallet loads with ease
-
Maximum Lifting Height: 138" (11.5 ft) — reach higher shelves effortlessly
-
Adjustable Fork Width: 8.6" to 28.3" — adaptable for different pallet sizes
-
Fork Length: 45.3" — suited for a wide range of load dimensions
-
Tilt Function: 2° forward and 5° backward — enhances load stability during transport
-
Motors: Powerful 24V AC drive motor (2,500W) and 24V lift motor (3,000W)
-
Battery: 24V/210Ah (side access) for extended operating times
-
Controller: Curtis Controller for smooth, responsive control
-
Electronic Power Steering (EPS): Effortless maneuverability in tight spaces
-
Polyurethane Wheels: Quiet, smooth travel across warehouse floors
-
Ergonomic Handle and Controls: Designed for operator comfort and efficiency
-
Durable Steel Construction: Ensures long-lasting performance and reliability
-
Charger Included: 24V/30A charger for quick battery replenishment
-
Warranty: 3 Years Limited Warranty for peace of mind
Specifications
| Specification | Details |
|---|---|
| Model | EK14-138 |
| Lift Type | Electric |
| Drive Type | Electric |
| Load Capacity | 3,300 lbs |
| Load Center Distance | 24 in |
| Wheel Base | 47 in |
| Maximum Lift Height | 138 in |
| Free Lift Height | 4 in |
| Lowered Mast Height | 90 in |
| Extended Mast Height | 155 in |
| Mast/Fork Tilt (Forward/Backward) | 2° / 5° |
| Overall Length | 105 in |
| Overall Width | 39 in |
| Fork Size (Thick/Width/Length) | 1.4" / 4" / 37" |
| Adjustable Fork Width | 8.7" – 28" |
| Turning Radius | 62 in |
| Max Gradient Performance (Laden/Unladen) | 6% / 10% |
| Lift Speed (Laden/Unladen) | 4 / 5.5 in/s |
| Lowering Speed (Laden/Unladen) | 5.3 / 4.7 in/s |
| Charger | 24V / 30A |
| Driving Motor | AC 24V / 2500W |
| Lifting Motor | 24V / 3000W |
| EPS Steering Motor | 24V / 200W |
| Battery Voltage/Capacity | 24V / 210Ah (Side) |
| Service Weight | 3,880 lbs |
Why Choose the EKKO EK14-138?
The EKKO EK14-138 offers a perfect balance of power, precision, and operator comfort for medium to heavy-duty warehouse applications. Its robust build, advanced motor technology, and ergonomic features make it a reliable partner for boosting productivity and safety in your material handling operations.
Description
EKKO EK14-138 Fully Powered Counterbalanced Walkie Stacker — 3,300 lbs Capacity with 138" Lift Height
The EKKO EK14-138 expertly blends the strength and flexibility of a forklift with the compact maneuverability of a walkie stacker. This model is perfect for efficient loading and unloading at trucks, warehouses, stock rooms, and manufacturing floors.
Crafted from high-quality steel with robotic welding and durable drive components, the EK14-138 is built to endure heavy use across varied terrains and tight spaces. Equipped with advanced ergonomics and smooth electronic power steering, it ensures operator comfort and precise handling.
Key Features
-
Load Capacity: 3,300 lbs — handles medium to heavy pallet loads with ease
-
Maximum Lifting Height: 138" (11.5 ft) — reach higher shelves effortlessly
-
Adjustable Fork Width: 8.6" to 28.3" — adaptable for different pallet sizes
-
Fork Length: 45.3" — suited for a wide range of load dimensions
-
Tilt Function: 2° forward and 5° backward — enhances load stability during transport
-
Motors: Powerful 24V AC drive motor (2,500W) and 24V lift motor (3,000W)
-
Battery: 24V/210Ah (side access) for extended operating times
-
Controller: Curtis Controller for smooth, responsive control
-
Electronic Power Steering (EPS): Effortless maneuverability in tight spaces
-
Polyurethane Wheels: Quiet, smooth travel across warehouse floors
-
Ergonomic Handle and Controls: Designed for operator comfort and efficiency
-
Durable Steel Construction: Ensures long-lasting performance and reliability
-
Charger Included: 24V/30A charger for quick battery replenishment
-
Warranty: 3 Years Limited Warranty for peace of mind
Specifications
| Specification | Details |
|---|---|
| Model | EK14-138 |
| Lift Type | Electric |
| Drive Type | Electric |
| Load Capacity | 3,300 lbs |
| Load Center Distance | 24 in |
| Wheel Base | 47 in |
| Maximum Lift Height | 138 in |
| Free Lift Height | 4 in |
| Lowered Mast Height | 90 in |
| Extended Mast Height | 155 in |
| Mast/Fork Tilt (Forward/Backward) | 2° / 5° |
| Overall Length | 105 in |
| Overall Width | 39 in |
| Fork Size (Thick/Width/Length) | 1.4" / 4" / 37" |
| Adjustable Fork Width | 8.7" – 28" |
| Turning Radius | 62 in |
| Max Gradient Performance (Laden/Unladen) | 6% / 10% |
| Lift Speed (Laden/Unladen) | 4 / 5.5 in/s |
| Lowering Speed (Laden/Unladen) | 5.3 / 4.7 in/s |
| Charger | 24V / 30A |
| Driving Motor | AC 24V / 2500W |
| Lifting Motor | 24V / 3000W |
| EPS Steering Motor | 24V / 200W |
| Battery Voltage/Capacity | 24V / 210Ah (Side) |
| Service Weight | 3,880 lbs |
Why Choose the EKKO EK14-138?
The EKKO EK14-138 offers a perfect balance of power, precision, and operator comfort for medium to heavy-duty warehouse applications. Its robust build, advanced motor technology, and ergonomic features make it a reliable partner for boosting productivity and safety in your material handling operations.
