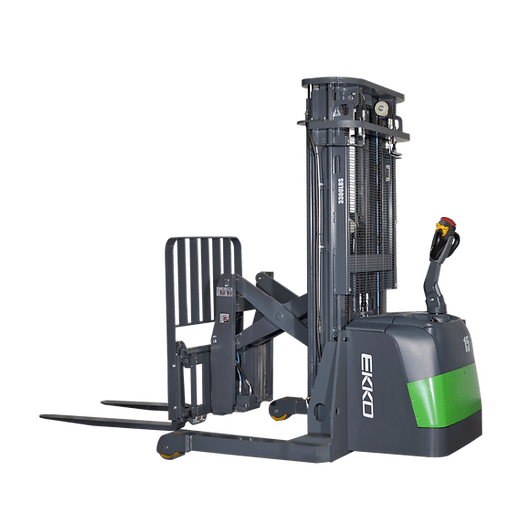

EKKO Reach Truck ER15-138Li

EKKO ER15-138Li Walkie Reach Truck – Technical Specifications

Power & Performance

• Power System: 24V Lithium-Ion (LiFePO4)

• Battery Capacity: 24V/200Ah (4.8kWh) included

• Drive Motor: 1.5kW AC

• Lift Motor: 4.5kW AC (Peak 6kW)

• Steering System: Electronic Power Steering (EPS)

• Max Speed: 4.5 mph (7.2 km/h) unloaded

• Gradeability: 6% unloaded / 3% loaded

Load Specifications

• Rated Capacity: 3,300 lbs (1,500 kg)

• Load Center: 24" (610 mm)

• Max Lift Height: 138" (11.5 ft / 3.5 m)

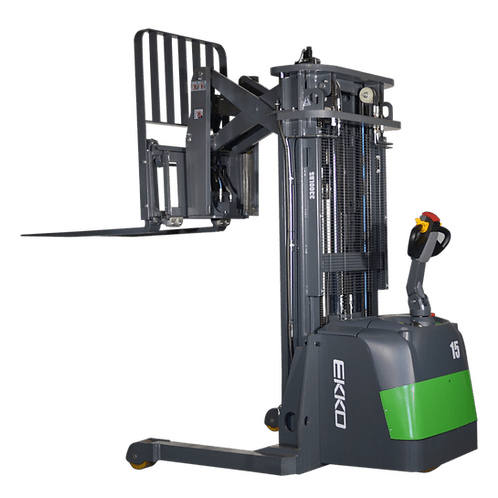

• Reach Distance: 19.7" (500 mm)

• Side Shift: ±2" (50 mm) adjustable

• Tilt Angle: ±3° forward/backward

• Fork Dimensions: 45.3"L × 3.9"W × 1.38"H (1,151×99×35 mm)

Maneuverability & Control

• Turning Radius: 63.4" (1,610 mm)

• Steering: AC-controlled EPS

• Braking System: Regenerative electromagnetic

• Control System: Curtis controller with diagnostics

Construction & Dimensions

• Mast Type: Triple-stage

• Frame Material: Robotic-welded steel

• Overall Length: 86.6" (2,200 mm)

• Overall Width:

  • Body: 32.3" (820 mm)

  • Legs: 59.1" (1,501 mm)

• Lowered Mast Height: 92.9" (2,360 mm)

• Service Weight: 3,780 lbs (1,715 kg)

• Wheel Configuration: Polyurethane wheels

Operational Features

• Lifting Speed:

  • 0.8 in/s (20 mm/s) loaded

  • 1.0 in/s (25 mm/s) unloaded

• Lowering Speed:

  • 1.5 in/s (38 mm/s) controlled

• Battery Runtime: 6-8 hours continuous

• Charge Time: 3-4 hours (80%), 5 hours (100%)

Advanced Technology

• Lithium-Ion Benefits:

  • 3,000+ charge cycles

  • Maintenance-free operation

  • 50% faster charging than lead-acid

• AC Drive System:

  • Energy recovery braking

  • Smooth acceleration control

  • Reduced maintenance

Included Features

• Curtis instrument controller

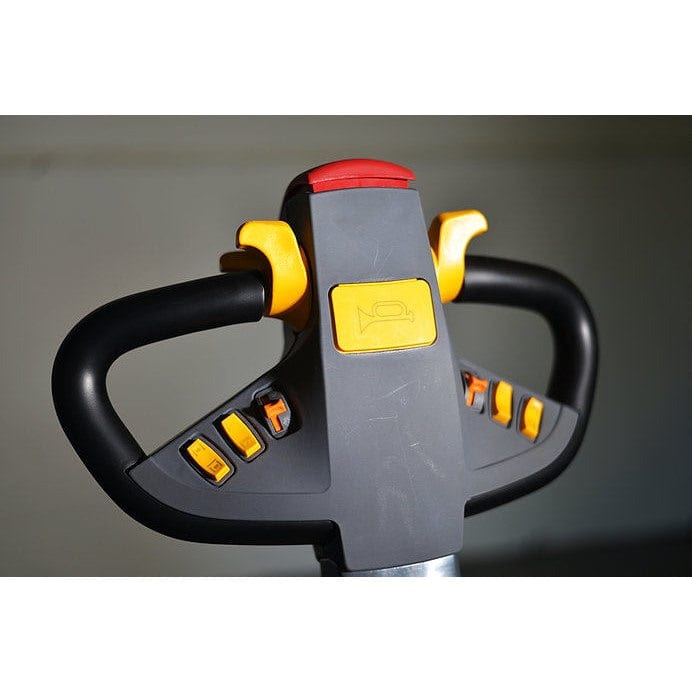

• Adjustable ergonomic handle

• Battery management system

• 24V/50A fast charger

• Full safety package

Warranty & Compliance

• Base Warranty: 3 years limited

• Battery Warranty: 5 years/4,000 cycles

• Safety Standards: ANSI/ITSDF B56.1, CE

• IP Rating: IP54 components

Key Advantages

1. Compact Reach Design: 19.7" forward reach capability

2. Space Efficiency: 63.4" turning radius

3. Lithium Power: Fast charging & long lifespan

4. Precision Control: Side shift + tilt functions

5. Lightweight Design: 1,715 kg total weight

Performance Comparison to ER15

• 28% lighter (3,780 vs 5,500 lbs)

• 20% faster charging

• Same 3,300 lb capacity

• More compact footprint

Ideal Applications:

• Medium-height racking systems

• Retail distribution centers

• Manufacturing parts handling

• Parcel logistics facilities

• Multi-shift warehouse operations

The EKKO ER15-138Li delivers professional reach truck capabilities in a more compact, lithium-powered package. Its 11.5 ft lift height combined with true reach functionality makes it ideal for operations requiring both vertical access and space-efficient operation in narrow aisles. The lithium power system reduces total cost of ownership through faster charging and zero maintenance requirements.

Why Choose the ER15-138Li?
? True reach capability without outriggers
? Lithium efficiency with 3,000+ cycles
? Compact 63.4" turning radius
? 50A fast charging capability
? Lighter weight for easier maneuvering
