EKKO Pallet Jack EPF15LI

SKU: EPF15LI

$2,420.60 $2,784.00

You Save: $363.40 14%

✅ #1 Authorized Online Dealer

🚚 Free Shipping & No Sales Tax

💲 We Beat The Lowest Price

📦 Fast 4-7 Day Delivery

❓Questions? Call Our Experts: xxx-xxx-xxxx

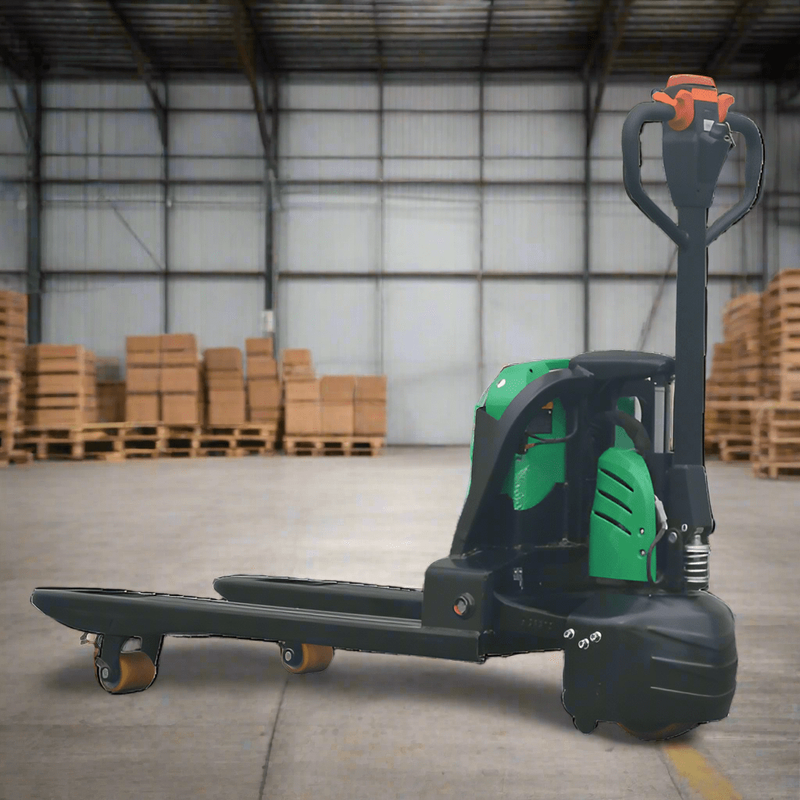

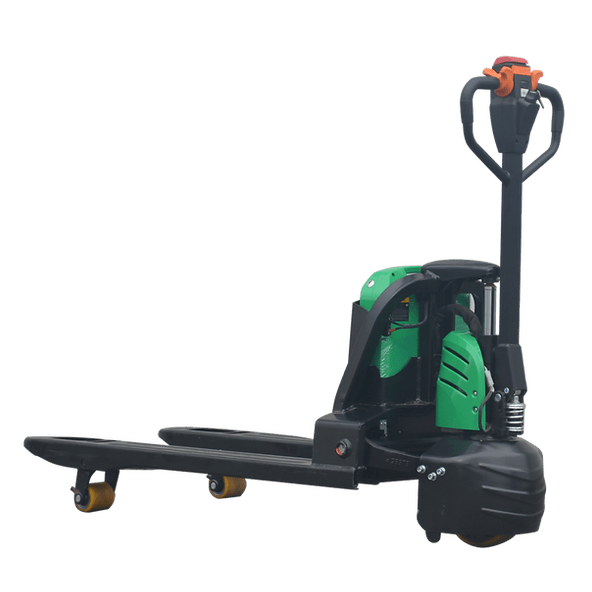

EKKO EPF15LI Lithium Walkie Pallet Jack – Technical Specifications

Power & Performance

Power System: 24V Lithium Iron Phosphate (LiFePO4)
Battery Capacity: 24V/30Ah (720Wh) included
Drive Motor: 0.75kW DC
Lift Motor: 0.8kW DC
Max Speed: 4.5 km/h (2.8 mph) unloaded
Gradeability: 10% unloaded / 5% loaded
Charger: 24V Smart Charger included

Load Specifications

Rated Capacity: 3,300 lbs (1,500 kg)
Load Center: 23.6" (600 mm)
Fork Dimensions: 45"L × 5.91"W × 1.97"H (1,143×150×50 mm)
Fork Width: 26.97" (685 mm) adjustable
Lift Height: 7.87" (200 mm)
Lowered Height: 2.95" (75 mm)

Maneuverability

Turning Radius: 57.8" (1,468 mm)
Minimum Aisle Widths:
- Crossways: 73.78" (1,874 mm)
- Lengthways: 75.75" (1,924 mm)
Pinwheel Capability: 360° rotation

Construction & Components

Frame Material: Robotic-welded steel
Wheel Configuration:
- Drive Wheel: Ø8.27" × 2.76" PU (210×70 mm)
- Bearing Wheels: Ø3.15" × 3.35" PU (80×85 mm)
Tread Width: 21.06" (535 mm)
Ground Clearance: 1.38" (35 mm)

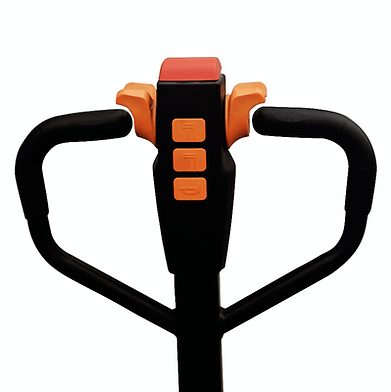

Operator Interface

Handle Height: Adjustable 29.13"-45.67" (740-1,160 mm)
Control System: DC motor speed control
Braking System: Electromagnetic brake
Noise Level: ≤70 dB(A)

Physical Dimensions

Overall Length: 65.86" (1,673 mm)
Body Length: 17.83" (453 mm)
Overall Width: 26.97" (685 mm)
Service Weight: 345 lbs (156 kg) with battery
Battery Weight: 17 lbs (7.7 kg)

Performance Features

Battery Runtime: 6-8 hours continuous
Charge Time: 1.5 hours (80%), 2.5 hours (100%)
Lifting Speed: 0.8 in/s (20 mm/s) loaded
Lowering Speed: 1.5 in/s (38 mm/s) controlled

Advanced Technology

Lithium Benefits:
- 3,000+ charge cycles
- Maintenance-free operation
- Consistent power delivery
- 50% faster charging than lead-acid
Energy Management:
- Battery protection system
- Temperature monitoring
- Automatic sleep mode

Warranty & Compliance

Base Warranty: 3 years limited
Battery Warranty: 5 years/4,000 cycles
Safety Standards: ANSI/ITSDF B56.1
IP Rating: IP54 (dust/moisture resistant)

Key Advantages

Lightweight Design: Only 345 lbs total weight
Compact Maneuverability: <58" turning radius
Fast Charging: 1.5 hours to 80% capacity
Quiet Operation: ≤70 dB noise level
Maintenance-Free: No battery watering

Ideal Applications:

Warehouse order picking
Retail stock replenishment
Manufacturing material transport
Loading dock operations
E-commerce fulfillment

The EKKO EPF15LI combines professional 3,300 lb capacity with advanced lithium technology in a maneuverable walkie pallet jack. Its lightweight design and fast-charging capability make it ideal for operations requiring maximum productivity in space-constrained environments.
