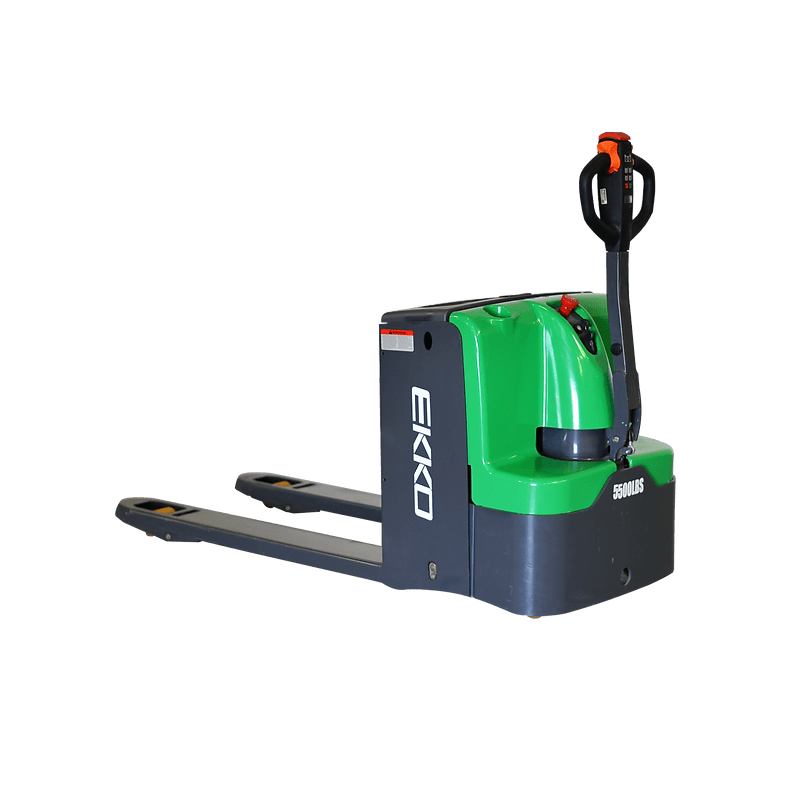

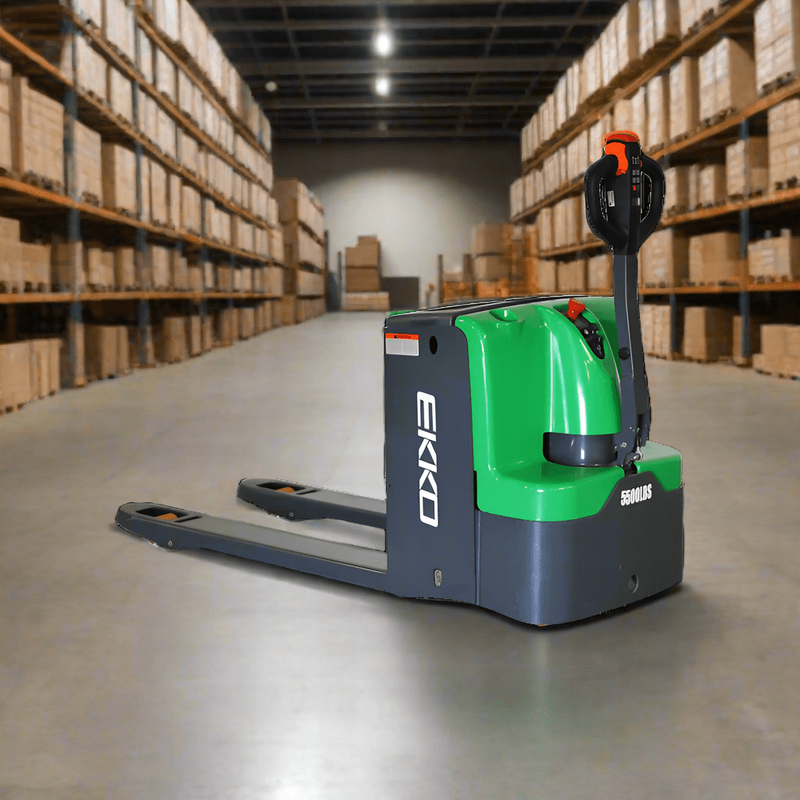

EKKO Pallet Jack EP25E-Li

EKKO EP25E-Li Lithium Walkie Pallet Jack – Technical Specifications

Power & Performance

• Power System: 24V Lithium-Ion (LiFePO4)

• Battery Capacity: 24V/150Ah (3.6kWh) included

• Drive Motor: 1.3kW AC (Curtis controller)

• Lift Motor: 0.8kW

• Max Speed: 1.1 in/s (2.8 km/h) unloaded

• Gradeability: 15% unloaded / 8% loaded

• Charger: 24V/50A ultra-fast charger included

Load Specifications

• Rated Capacity: 5,500 lbs (2,495 kg) - industry-leading

• Load Center: 24" (610 mm)

• Fork Dimensions: 48"L × 6"W × 2"H (1,219×152×51 mm)

• Fork Width: 27" (686 mm) adjustable

• Lift Height: 7.9" (201 mm)

• Lowered Height: 3.33" (85 mm)

Maneuverability & Control

• Turning Radius: 60" (1,524 mm)

• Wheel Configuration:

  • Polyurethane load wheels (high-density)

  • Steel entry wheels (hardened)

• Braking System: Electromagnetic with regeneration

• Control System: AC motor with Curtis speed control

Construction & Dimensions

• Frame Material: Robotic-welded steel (12-gauge)

• Overall Length: 71.2" (1,808 mm)

• Overall Width: 27.5" (699 mm)

• Wheelbase: 53" (1,346 mm)

• Service Weight: 1,010 lbs (458 kg) with battery

• Noise Level: 68 dB(A) at operator position

Operational Features

• Lifting Speed:

  • 0.8 in/s (20 mm/s) loaded

  • 1.1 in/s (28 mm/s) unloaded

• Lowering Speed: 1.5 in/s (38 mm/s) controlled

• Battery Runtime: 10-12 hours continuous (3-shift capability)

• Charge Time: 1.5 hours (80%), 2.5 hours (100%)

Advanced Technology

• Lithium-Ion Advantages:

  • 3,000+ charge cycles (5× lead-acid life)

  • Maintenance-free operation

  • Consistent power delivery

  • 50A ultra-fast charging

• Smart Features:

  • Battery management system

  • Performance tracking

  • Predictive maintenance alerts

Included Features

• Curtis AC controller with diagnostics

• Ergonomic handle with LCD display

• 24V/150Ah lithium battery

• Ultra-fast 50A charger

• Battery status monitoring system

Warranty & Compliance

• Base Warranty: 3 years limited

• Battery Warranty: 5 years/4,000 cycles

• Safety Standards: ANSI/ITSDF B56.1, CE, UL

• IP Rating: IP54 (dust/moisture resistant)

Key Advantages vs Lead-Acid Models

1. 90 lbs Weight Reduction: (1,010 vs 1,100 lbs)

2. 3× Faster Charging: 2.5h vs 8h full charge

3. Zero Maintenance: No watering/equalization

4. Consistent Performance: No voltage drop

5. Longer Lifespan: 5× battery cycle life

Performance Comparison

• Same 5,500 lb capacity as lead-acid version

• 20% faster acceleration due to lithium power

• 30% energy savings from regeneration

• 50% smaller charger footprint

Ideal Applications:

• Heavy manufacturing (automotive, steel)

• Food/beverage distribution

• Lumber and building materials

• Container loading operations

• High-throughput warehouses

Maintenance Schedule

• Daily: Visual inspection

• Monthly: Wheel bearing check

• Annually: Full system diagnostic

• Battery: No maintenance required

The EKKO EP25E-Li represents the ultimate evolution in high-capacity walkie pallet jacks, combining groundbreaking 5,500 lb capacity with advanced lithium technology. Its professional-grade construction and ultra-fast charging capability make it ideal for operations requiring maximum uptime and productivity in demanding material handling applications.
