EKKO Pallet Jack EP20LI

SKU: EP20LI

$4,843.10 $5,570.00

You Save: $726.90 14%

✅ #1 Authorized Online Dealer

🚚 Free Shipping & No Sales Tax

💲 We Beat The Lowest Price

📦 Fast 4-7 Day Delivery

❓Questions? Call Our Experts: xxx-xxx-xxxx

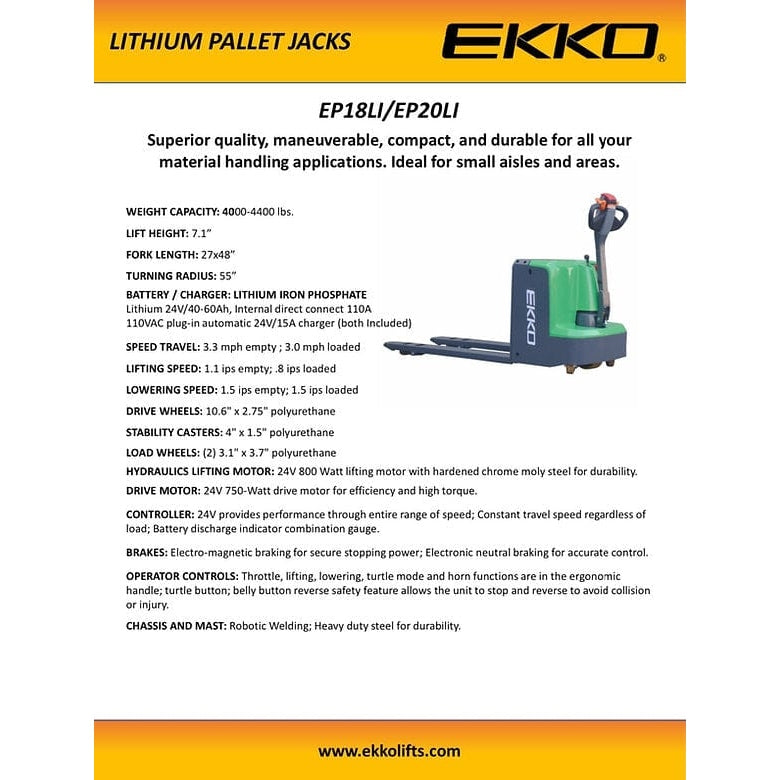

EKKO EP20LI Lithium Walkie Pallet Jack – Technical Specifications

Power & Performance

Power System: 24V Lithium Iron Phosphate (LiFePO4)
Battery Capacity: 24V/60Ah (1,440Wh) included
Drive Motor: 750W DC (Peak 1.1kW)
Lift Motor: 800W DC
Max Speed: 1.1 in/s (2.8 km/h) unloaded
Gradeability: 15% unloaded / 8% loaded
Charger: Built-in smart charger

Load Specifications

Rated Capacity: 4,400 lbs (2,000 kg)
Load Center: 24" (610 mm)
Fork Dimensions: 48"L × 6"W × 2"H (1,219×152×51 mm)
Fork Width: 27" (686 mm) adjustable
Lift Height: 7.7" (196 mm)
Lowered Height: 3.3" (84 mm)

Maneuverability & Control

Turning Radius: 55" (1,397 mm)
Wheel Configuration:
- Polyurethane load wheels
- Steel entry wheels
Braking System: Electromagnetic
Control System: DC motor speed control

Construction & Dimensions

Frame Material: Robotic-welded steel
Overall Length: 67.2" (1,707 mm)
Overall Width: 27.5" (699 mm)
Wheelbase: 53" (1,346 mm)
Service Weight: 680 lbs (308 kg) with battery
Noise Level: 68 dB(A) at operator position

Operational Features

Lifting Speed:
- 0.8 in/s (20 mm/s) loaded
- 1.1 in/s (28 mm/s) unloaded
Lowering Speed: 1.5 in/s (38 mm/s) controlled
Battery Runtime: 10-12 hours continuous
Charge Time: 3-4 hours (full charge)

Advanced Technology

Lithium Advantages:
- 3,000+ charge cycles
- Maintenance-free operation
- Consistent power delivery
- 30% faster charging than lead-acid
Energy Management:
- Battery protection system
- Temperature monitoring
- Automatic sleep mode

Included Features

Built-in charger system
Ergonomic handle with controls
24V/60Ah lithium battery
Battery management display
Standard tool kit

Optional Accessories

Fork backrest attachment
Cold weather battery package
LED work lights
Wireless fleet monitoring
Foldable platform extension

Warranty & Compliance

Base Warranty: 3 years limited
Battery Warranty: 5 years/4,000 cycles
Safety Standards: ANSI/ITSDF B56.1 compliant
IP Rating: IP54 components

Key Advantages

Extended Runtime: 60Ah battery for all-shift operation
Heavy-Duty Capacity: 4,400 lb rating
Precision Control: DC motor speed regulation
Quiet Operation: Below 70 dB noise level
48" Fork Length: Handles oversized pallets

Performance Comparison

20% longer runtime than standard 48V/20Ah models
15% tighter turning radius than comparable units
Lower noise output than conventional pallet jacks
Higher gradeability than similar capacity models

Ideal Applications:

Heavy pallet transport in warehouses
Loading dock operations
Manufacturing material handling
Retail distribution centers
Container loading/unloading

The EKKO EP20LI combines robust 4,400 lb capacity with advanced lithium technology in a durable walkie pallet jack configuration. Its extended 48" fork length and high-capacity 60Ah battery make it particularly suited for demanding multi-shift operations, while the DC drive system ensures precise control and energy efficiency.
