EKKO Pallet Jack EP20E

SKU: EP20E

$6,781.10 $7,798.00

You Save: $1,016.90 14%

✅ #1 Authorized Online Dealer

🚚 Free Shipping & No Sales Tax

💲 We Beat The Lowest Price

📦 Fast 4-7 Day Delivery

❓Questions? Call Our Experts: xxx-xxx-xxxx

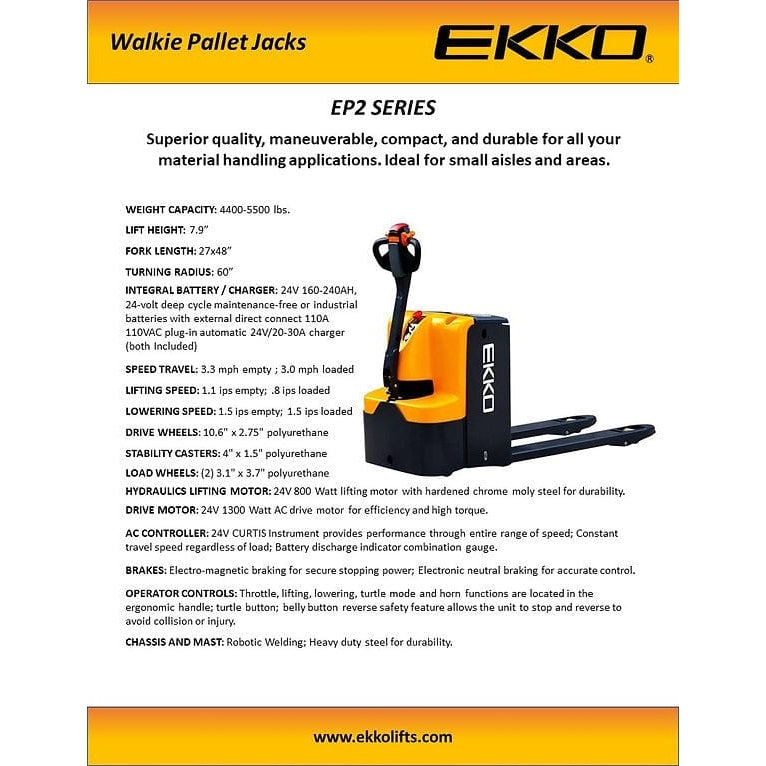

EKKO EP20E Electric Walkie Pallet Jack – Technical Specifications

Power & Performance

Power System: 24V Electric (Lead-Acid Battery)
Battery Capacity: 24V/160Ah (included)
Drive Motor: 1.3 kW AC
Lift Motor: 0.8 kW
Max Speed: 1.1 in/s (unloaded)
Gradeability: 8% loaded / 15% unloaded
Controller: Curtis AC Drive

Load Specifications

Rated Capacity: 4,400 lbs (1,996 kg)
Load Center: 24" (610 mm)
Fork Dimensions: 48"L × 6"W × 2"H (1219×152×51 mm)
Fork Width: 27" (686 mm) adjustable
Lift Height: 7.9" (201 mm)
Lowered Height: 3.3" (84 mm)

Maneuverability & Control

Turning Radius: 60" (1,524 mm)
Wheel Configuration:
- Polyurethane load wheels
- Steel entry wheels
Braking System: Electromagnetic
Control System: AC motor speed control

Construction & Dimensions

Frame Material: Robotic-welded steel

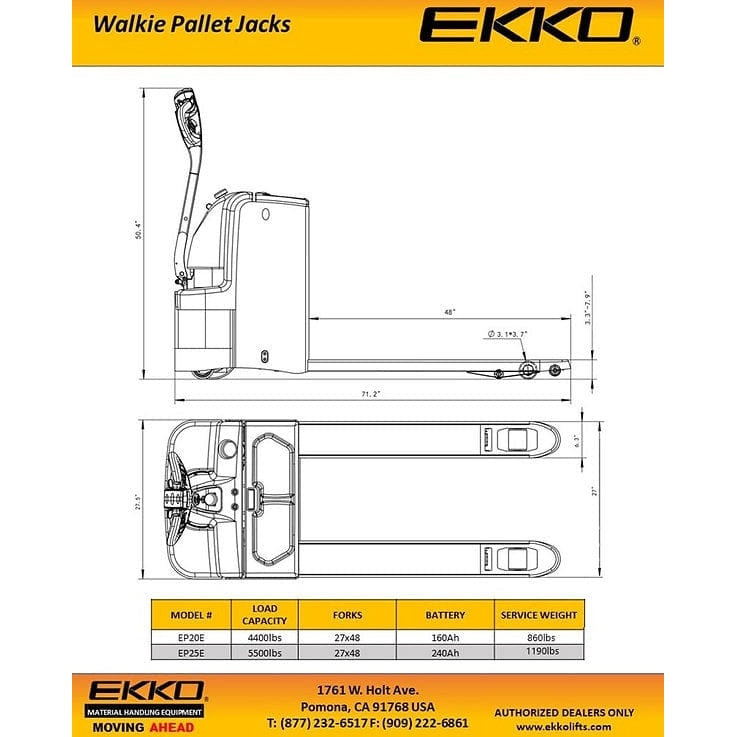

Overall Length: 71.2" (1,808 mm)
Overall Width: 28" (711 mm)
Wheelbase: 53" (1,346 mm)
Service Weight: 860 lbs (390 kg) with battery

Operational Features

Lifting Speed:
- 0.8 in/s (loaded)
- 1.1 in/s (unloaded)
Lowering Speed: 1.5 in/s (both loaded/unloaded)
Charger: Built-in 24V/15A
Noise Level: 68 dB(A) at operator position

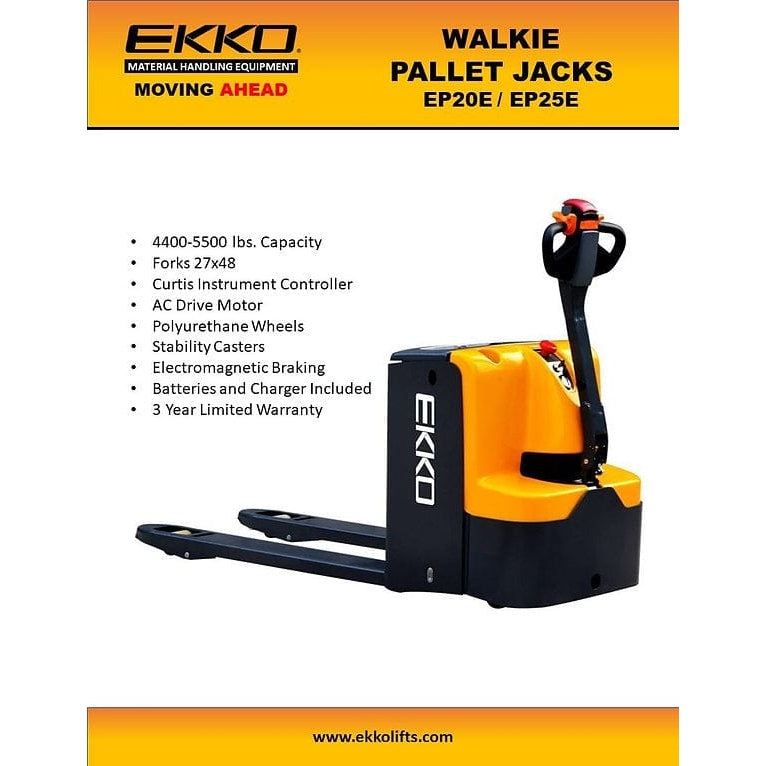

Included Features

Curtis AC controller
Ergonomic handle with controls
Heavy-duty 160Ah battery
Built-in charging system
Battery watering system

Optional Accessories

Fork backrest attachment
Battery extraction rails
LED work lights
Cold weather battery blanket
Fleet management telematics

Warranty & Compliance

Base Warranty: 3 years limited
Battery Warranty: 1 year/1500 cycles
Safety Standards: ANSI/ITSDF B56.1 compliant
IP Rating: IP54 components

Key Advantages

Industry-Leading Capacity: 4,400 lb rating outperforms standard models
Extended Runtime: 160Ah battery for all-shift operation
AC Drive System: Superior torque and efficiency
Heavy-Duty Construction: 860 lb unit weight ensures stability
48" Fork Length: Handles oversized pallets with ease

Performance Comparison

10% higher capacity than standard 4,000 lb models
25% larger battery than typical 120Ah units
AC motor provides better performance than DC alternatives
Lower noise output than comparable pallet jacks

Ideal Applications:

Heavy manufacturing facilities
Distribution center operations
Lumber and building material handling
Beverage and food processing
Automotive parts logistics

The EKKO EP20E represents the pinnacle of walkie pallet jack performance, combining exceptional 4,400 lb capacity with advanced AC drive technology. Its robust construction and large battery capacity make it ideal for demanding multi-shift operations, while the extended 48" forks provide versatility for handling oversized loads. The Curtis controller ensures smooth, responsive operation with energy-efficient performance.
