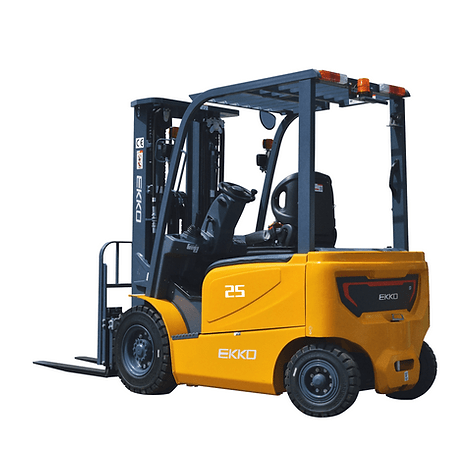

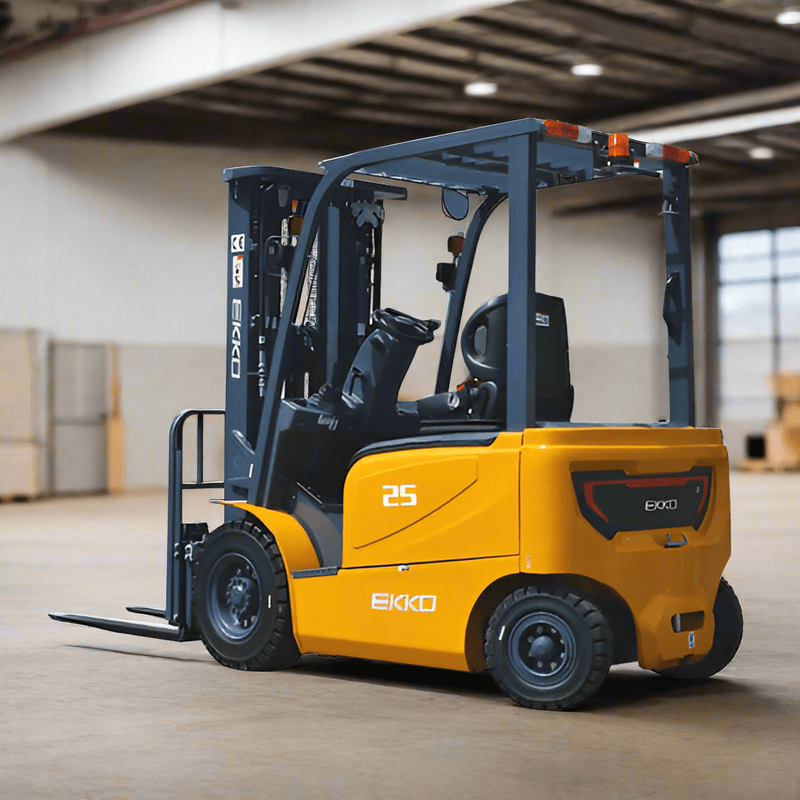

EKKO EK25GB 4-Wheel Electric Forklift – 5,000 lb Capacity
Powerful. Reliable. Precision Engineered for Every Lift.
The EKKO EK25GB 4-Wheel Electric Forklift is the ultimate solution for demanding material handling tasks. Whether you're loading trailers, stocking warehouse aisles, or transporting pallets across the production floor, this high-performance electric forklift is built to deliver dependable power, safety, and efficiency.
Constructed with high-grade steel and advanced robotic welding, the EK25GB is engineered for durability in rugged industrial environments. Its solid pneumatic tires and precision ZAPI control system provide excellent traction and maneuverability, ensuring smooth operation on varied surfaces.
Key Features:
-
5,000 lb Load Capacity – Designed for heavy-duty lifting in warehouses, factories, and docks
-
Lift Height: 189" (15.75 ft) – Efficient vertical reach for high-stacking operations
-
Free Lift Height: 47.48" – Perfect for tight indoor spaces with overhead limitations
-
Side Shifting Forks – Easy fork alignment with 3-way hydraulic valve for quick load adjustment
-
Fork Dimensions: 1.57" Thick x 4.72" Wide x 42.12" Long
-
Fork Width Adjustable: 8.7" to 29"
-

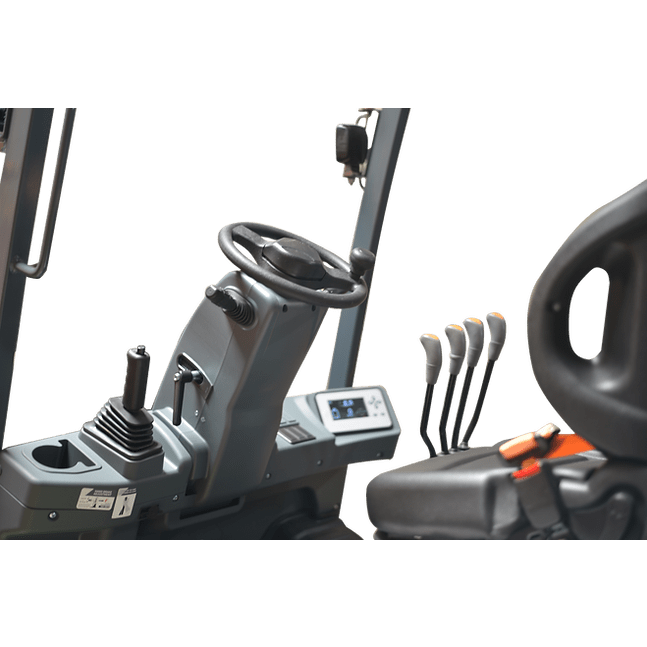

Ergonomic Handle & Control System – Operator-focused design for comfort and precision
-
ZAPI Controller – Smooth, programmable electric control with dependable performance
-
Battery: 48V / 600Ah Lead-Acid for long runtime
-
Optional 3-Phase 220V/480V Charger – Flexible charging options for any facility
-
Solid Pneumatic Tires – Industrial-grade traction on indoor and outdoor surfaces
-
Steel Construction & Robotic Welding – Built to withstand daily abuse and impact
-
3-Year Limited Warranty – Backed by industry-leading manufacturer support
Specifications:
| Specification | Details |
|---|---|
| Model | EK25GB |
| Drive / Lift Type | Electric |
| Load Capacity | 5,000 lbs |
| Load Center Distance | 24 inches |
| Lift Height | 189 inches |
| Free Lift Height | 47.48 inches |
| Lowered Mast Height | 83 inches |
| Fork Size (T/W/L) | 1.57" x 4.72" x 42.12" |
| Adjustable Fork Width | 8.7" - 29" |
| Mast Tilt (Forward/Backward) | 6° / 6° |
| Turning Radius | 84.2 inches |
| Overall Length (with forks) | 137.95 inches |
| Overall Width | 46.45 inches |
| Wheelbase | 65.35 inches |
| Max Gradeability (Laden/Unladen) | 15% / 25% |
| Battery Voltage / Capacity | 48V / 600Ah Lead Acid |
| Lift Motor Power | 12 kW |
| Drive Motor Power | 11 kW |
| Side Shift | 3-way valve included |
| Tires | Solid Pneumatic |
| Service Weight | 9,981 lbs |
Built for Productivity and Longevity
From tight warehouse aisles to open yards, the EK25GB offers unmatched stability, excellent lift speed, and reduced maintenance downtime. Its electric drive system is not only quieter and cleaner but also more cost-effective compared to internal combustion models.
Perfect for: ? Warehousing & Logistics ? Manufacturing Plants ? Freight Terminals ? Distribution Centers ? Retail Stockrooms
Description
EKKO EK25GB 4-Wheel Electric Forklift – 5,000 lb Capacity
Powerful. Reliable. Precision Engineered for Every Lift.
The EKKO EK25GB 4-Wheel Electric Forklift is the ultimate solution for demanding material handling tasks. Whether you're loading trailers, stocking warehouse aisles, or transporting pallets across the production floor, this high-performance electric forklift is built to deliver dependable power, safety, and efficiency.
Constructed with high-grade steel and advanced robotic welding, the EK25GB is engineered for durability in rugged industrial environments. Its solid pneumatic tires and precision ZAPI control system provide excellent traction and maneuverability, ensuring smooth operation on varied surfaces.
Key Features:
-
5,000 lb Load Capacity – Designed for heavy-duty lifting in warehouses, factories, and docks
-
Lift Height: 189" (15.75 ft) – Efficient vertical reach for high-stacking operations
-
Free Lift Height: 47.48" – Perfect for tight indoor spaces with overhead limitations
-
Side Shifting Forks – Easy fork alignment with 3-way hydraulic valve for quick load adjustment
-
Fork Dimensions: 1.57" Thick x 4.72" Wide x 42.12" Long
-
Fork Width Adjustable: 8.7" to 29"
-
Ergonomic Handle & Control System – Operator-focused design for comfort and precision
-
ZAPI Controller – Smooth, programmable electric control with dependable performance
-
Battery: 48V / 600Ah Lead-Acid for long runtime
-
Optional 3-Phase 220V/480V Charger – Flexible charging options for any facility
-
Solid Pneumatic Tires – Industrial-grade traction on indoor and outdoor surfaces
-
Steel Construction & Robotic Welding – Built to withstand daily abuse and impact
-
3-Year Limited Warranty – Backed by industry-leading manufacturer support
Specifications:
| Specification | Details |
|---|---|
| Model | EK25GB |
| Drive / Lift Type | Electric |
| Load Capacity | 5,000 lbs |
| Load Center Distance | 24 inches |
| Lift Height | 189 inches |
| Free Lift Height | 47.48 inches |
| Lowered Mast Height | 83 inches |
| Fork Size (T/W/L) | 1.57" x 4.72" x 42.12" |
| Adjustable Fork Width | 8.7" - 29" |
| Mast Tilt (Forward/Backward) | 6° / 6° |
| Turning Radius | 84.2 inches |
| Overall Length (with forks) | 137.95 inches |
| Overall Width | 46.45 inches |
| Wheelbase | 65.35 inches |
| Max Gradeability (Laden/Unladen) | 15% / 25% |
| Battery Voltage / Capacity | 48V / 600Ah Lead Acid |
| Lift Motor Power | 12 kW |
| Drive Motor Power | 11 kW |
| Side Shift | 3-way valve included |
| Tires | Solid Pneumatic |
| Service Weight | 9,981 lbs |
Built for Productivity and Longevity
From tight warehouse aisles to open yards, the EK25GB offers unmatched stability, excellent lift speed, and reduced maintenance downtime. Its electric drive system is not only quieter and cleaner but also more cost-effective compared to internal combustion models.
Perfect for: ? Warehousing & Logistics ? Manufacturing Plants ? Freight Terminals ? Distribution Centers ? Retail Stockrooms
